Ripley’s Thoughts on Containerization

And maybe some facts too

---

Game plan

• This week: what is a Linux container and how do I build one?
• Next week: cool things with web apps, maybe even inside a container
• Next next week: running a cluster of apps on Kubernetes

---

First things: what about Docker and why won’t you say it?

We’ll get to that later

---

Ok, moving on…

---

What is the right size of a computer?

• We spend a lot of time clustering servers together to solve big problems
• We spend even more time subdividing servers to work on a lot of little problems
• We almost never look at a server and think it’s the right size
• This talk is not about the elusive right-size server, or the pursuit of solving big problems with clusters

---

Bare Metal Servers

• Let’s frame this conversation in terms of four layers
• Resource allocation is very static and often requires a credit card to adjust
• Library versions can conflict between applications

---

Virtual Machines

• Traditional subdivision used a hypervisor layer to create fake hardware
  • Foundations of this approach can be traced back to IBM S/370 LPARs in 1972
  • VMware brought it to Intel machines in 1998
• “Guest” operating systems ran largely unmodified
• Resource allocation was static and required a guest reboot to change
• Applications can be isolated from each other

---

Containers

• People found themselves running huge numbers of nearly identical Linux machines
• Even for different distros, the kernel was nearly identical
• Namespaces allow the kernel to lie to applications, and believe they’re running alone
• Resource allocation under one kernel can be very dynamic

---

Some history

---

A study of containerization shouldn’t be limited to Linux

• FreeBSD introduced “jails” in 2000
• Solaris introduced “zones” in 2004
• Both of these have a much more thorough design, coming from operating systems with much more control of the entire development process
• Windows Subsystem for Linux could be considered a form of container (circa 2016)
  • WSL2 is now virtualized

---

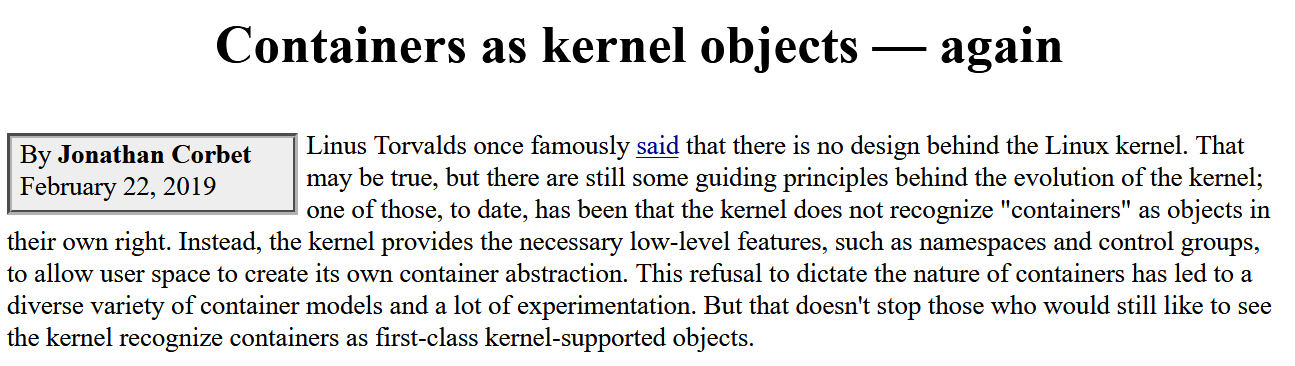

https://lwn.net/Articles/780364/

---

Linux containers don’t really “exist”

• Unlike better designed systems like FreeBSD or Solaris, containers are not a kernel object on Linux
• A Linux container is an illusion created by a tool like docker, that ties together various pieces like namespaces and cgroups
• Without a proper definition of their boundaries, there have been issues with host information leaking into containers or applications escaping their container
• Linux security technologies like SELinux, AppArmor, capabilities, or seccomp help enforce container boundaries
• Research is also underway to wrap containers with hardware virtualization

---

What are namespaces?

• You’ve probably only thought of Linux in terms of one global namespace
• All users and programs share one view of the system
• Namespaces can restrict a user or application’s view of the system

---

What namespaces are there?

• Mount - the view of filesystems and directories
• Process ID - the view of running processes and map fake process IDs to real PIDs (PID 1, etc)
• Network - what IP address is in use
• IPC - which message queues and semaphores are in use
• Time - set the system clock
• UTS - the hostname of the system
• User ID - map fake user IDs to real UIDs (root UID 0, etc)

---

cgroups

• CPU - assign CPU cores and time shares
• Memory - limit RAM allocation
• Network IO - limit network bandwidth
• Disk IO - limit filesystem bandwidth

You can use cgroups today inside systemd unit files to help control uncooperative services.

---

Enter Docker

• chroot introduced in 1979
• cgroups introduced in 2006
• Mount namespaces in 2002, others in 2006
• Docker launched in 2010, docker in 2013
• One of the first to tie all of these technologies together

---

Red Hat’s docker Concerns

• docker is implemented as one giant daemon binary, controlled by messages sent via a filesystem socket
• Containers are launched as children of this daemon, making it difficult to update while running
• Compromise of the daemon is essentially compromise of the system, with no audit records
• Tight coupling of the daemon and user utility lead to breakage between versions
• Docker had little interest in fundamentally changing their architecture

---

The Red Hat container family

• Red Hat has launched a collection of replacement utilities
  • buildah for building containers
  • podman for running containers
  • skopeo for inspecting, downloading, and uploading containers
• Born in Red Hat’s Boston office, so buildah is mocking the local accent
• podman thinks slightly larger than a container and uses a “pod” as the namespace boundary. By default, containers are launched 1:1 with pods
• These utilities run as the calling user, and launch containers directly under systemd

---

Docker vs docker vs containers

• Multiple implementations have lead to the Linux Foundation launching the Open Container Initiative
• Packaging and description of containers are now standardized
• docker and podman among other friends like runC, CRI-O, or containerd
• podman is designed as a rough superset of docker, and some people successfully alias them
• Docker has a somewhat uncertain financial future, but docker is an Apache licensed project
• Companies got a surprise bill for Docker Desktop last year

---

How is a container built? Declarative Dockerfile/Containerfile

• Describes the base layer of the container
• Describes the steps used to build the container
• Describes the network requirements of the container
• Sets the binary that will run when the container is launched

---

How else is a container built? Scripted buildah

• Buildah allows you to create a container using normal shell scripting
• Slightly trickier, but allows you absolute control of the build

---

Demo logistics

---

Podman Hello World

• podman run hello-world
• podman ps -a
• podman images

Clean up

• podman rm ID - from output of podman ps -a
• podman rmi ID - from output of podman images

---

Docker Hub

If you look closely at the last command, you might notice this:

Resolved "hello-world" as an alias (/etc/containers/registries.conf.d/000-shortnames.conf)
Trying to pull docker.io/library/hello-world:latest...

• Container images have to be hosted by a registry, and Docker Hub remains a popular choice.
• GitHub, the major clouds, Red Hat, and others all host their own registries.
• For added safety, you should consider including the registry prefix when downloading.
• Beware of an image’s origins, build process, and update schedule. There’s a lot of garbage published on Docker Hub.

---

Run some Ubuntu

• cat /etc/os-release and notice CentOS
• podman run -it ubuntu:20.04 /bin/bash
  • Notice podman resolving and pulling image layers as needed
  • -i - keep stdin open
  • -t - allocate a pseudo-terminal
  • cat /etc/os-release and now notice Ubuntu
  • exit

---

Run some different Ubuntu

• podman pull ubuntu:20.10
• podman run -it ubuntu:20.10 /bin/bash
  • Notice the instant launch, since we downloaded first
  • cat /etc/os-release
  • Ctrl P Q to disconnect
  • podman attach ID to reconnect

---

Inspect and clean up some Ubuntu

• podman images
• podman ps -a
• podman rm ID - dead/exited containers
• podman rmi ID - unused images
• podman inspect ubuntu:20.04
  • Nothing particularly interesting in the Ubuntu container, but a handy tool as you progress

---

Let’s actually do some work in a container

• podman pull httpd:2.4 - notice the repo ambiguity
• podman run -d -p YOUR-PORT:80 httpd:latest
  • -d - detach the container into the background
  • -p - map a local port into the container
• Open Firefox and browse http://demo:YOUR-PORT

---

What can we learn about this container?

• podman ps - shows us a running container for the first time
  • Container’s hash ID
  • Image source
  • Launch command
  • Runtime
  • Port mappings
  • Nickname
• podman logs [-f] ID - show recent stdout
• podman start/stop ID - to pause and resume the container
• podman kill ID - end the container
• Clean up with podman rm ID

---

Let’s build our own

• mkdir container1; cd container1
• vi index.html

<h1>I made a container at UUG</h1>

• vi Containerfile

FROM httpd:2.4
COPY index.html /usr/local/apache2/htdocs/

• buildah bud -t my-apache:1.0 .

---

Running our new fancy image

• podman images
• podman run -d --rm --name my-app -p YOUR-PORT:80 my-apache
• Open http://demo-host:YOUR-PORT in Firefox
• Adding --rm auto-deletes the container when it stops

---

A quick buildah example

container=$(buildah from httpd:2.4)
buildah copy $container index.html /usr/local/apache2/htdocs/
buildah commit $container buildah-apache
buildah rm $container

---

Sharing containers with friends

• Remember how we’re using Docker Hub as a registry? Instead of registering accounts there, our server is hosting its own registry
• Tag your image to prepare it for upload: podman tag localhost/buildah-apache:latest localhost:5000/YOUR NAME/buildah-apache:latest
• Upload it: podman push --tls-verify=false localhost:5000/YOUR NAME/buildah-apache:latest
• If you’re curious, you can query the registry API: curl http://localhost:5000/v2/_catalog
• If you’re brave, you can now pull and run somebody else’s image

---

ReactJS Finale

• Browse or clone https://github.com/jmunixusers/presentations and find the containers/react-hello-world folder
• Containerfile has the declarative form, and build.sh has the script version
• Run buildah bud --tag react-hello:latest -f Containerfile
• The script version can be run as is
